Flexible Foundation Components

Flexible Foundation Components for Wind Turbine Installations

Proplate manufactures gravity foundation components for wind turbines designed to deliver secure, long term anchoring in soil and mixed ground conditions. Our foundation solutions support modern turbine towers of varying heights and loads, providing stability where bedrock anchoring is not feasible.

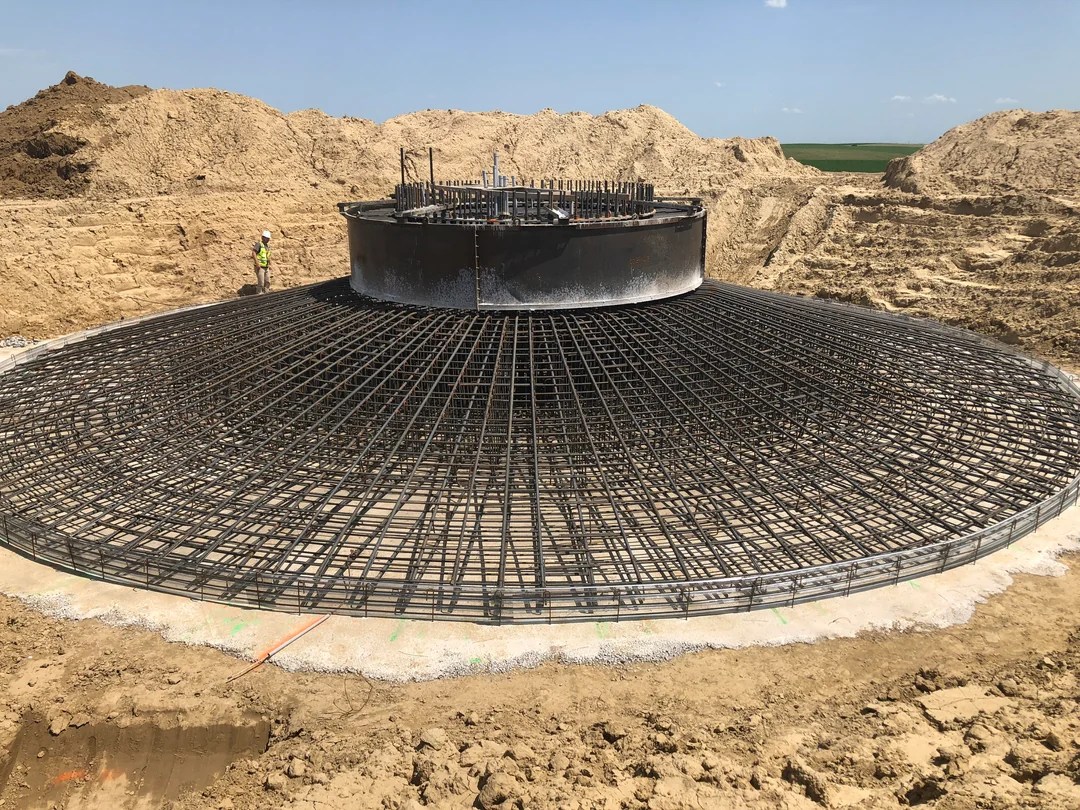

Gravity foundations consist of a steel bolt cage installed below ground level and embedded in reinforced concrete. The wind turbine tower is mounted directly onto the bolt cage, transferring loads safely into the ground. Foundation size and configuration are tailored to site conditions and turbine height, with taller towers requiring larger and more robust anchoring systems.

Safe and Stable Foundations for Soft Ground Sites

Proplate provides proven and cost effective gravity foundation solutions for wind turbines installed in soil based locations without direct bedrock contact. These systems are widely used across onshore wind projects and are engineered to support the tallest and most powerful turbines in operation today.

Our bolt cages are manufactured using precision cut heavy plate steel and pre assembled in sections to reduce on site installation time and improve safety during foundation construction. By partnering with leading bolt manufacturers, we ensure consistent quality and performance for every foundation component we deliver.

Flexible Delivery Options for Wind Farm Construction

Customers can choose fully pre assembled bolt cages, partially assembled sections, or complete ready to assemble kits that include anchor rings, bolts, and all required components. This flexibility helps streamline installation, reduce handling on site, and support efficient foundation construction.

High Precision Manufacturing for Gravity Foundations

Proplate manufactures foundation components to meet strict quality and tolerance requirements for gravity foundations. Using heavy plate steel up to 150 millimeters thick, we precisely cut, CNC machine, and weld foundation rings and assemblies to exact specifications.

Surface preparation and corrosion protection services such as painting and thermal spray coatings support long term durability in harsh outdoor environments.

Efficient Production for Time Critical Wind Projects

Wind power projects often operate on tight schedules. Proplate supports these demands with efficient production workflows and pre assembly services that reduce on site labor and installation time.

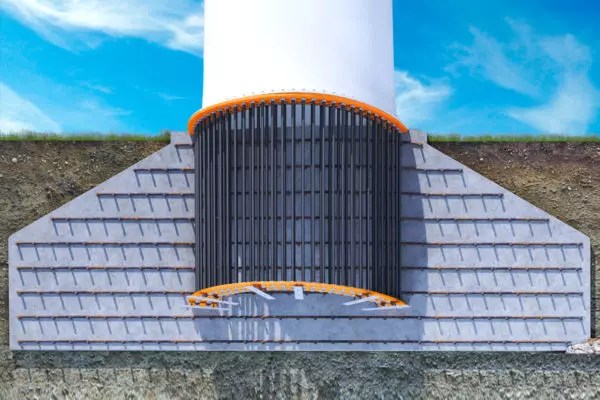

Proplate Soil Secure

Proplate Soil Secure is a gravity based bolt cage solution designed for wind turbines anchored in soil. This traditional and widely used anchoring method provides stable support for large onshore wind turbines.

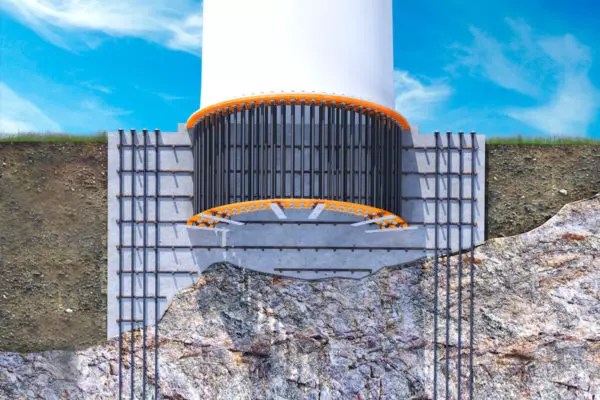

Proplate Mixed Secure

Proplate Mixed Secure is designed for mixed ground conditions where bedrock is covered by soil or gravel. This solution combines a compact bolt cage embedded in concrete with long threaded rock anchors installed deep into the underlying bedrock.

Proplate Mixed Secure is ideal for challenging terrain and higher elevation sites where standard gravity foundations alone are not sufficient.
